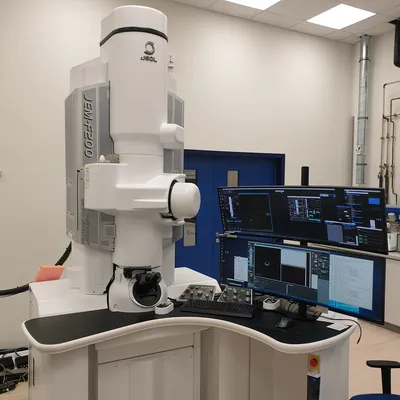

Jeol JEM-F200
Specifications
- Emittor: cold-field emission gun
- Energy spread ≤ 0.35 eV
- Accelerating voltage: 80-200 kV
- Information limit TEM: 0.1 nm
- Point resolution TEM: 0.23 nm
- Resolution STEM-HAADF: 0.16 nm
- Large area SDD EDX spectrometer with 100mm2
active area and total solid angle: 1.7 sr
- Gatan Continuum EEL Spectrometer
Detectors
- Gatan Metro electron counting detector
- Gatan GIF K3 electron counting detector
- Gatan GIF Stela hybrid-pixel electron counting detector
Holders
Jeol high tilt holder (tilt range +/-80°)
Jeol low background double-tilt holder
Gatan cryo single tilt holder
Location
Room: 11 110
